Vacuum tube: military jan5963 vacuum tube
Digital input: 1 AES / EBU, 2 s / PDIF, 2 nagra-link, 1 optical fiber, 1 audio USB (uca2)

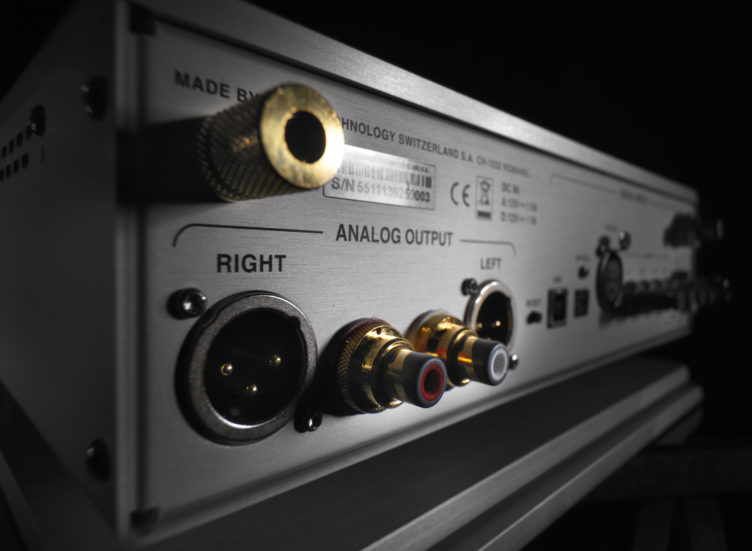

Analog output: 1 stereo on RCA connector,
1 stereo XLR (optional symmetrical transformer)
Sampling frequency: 11.2 MHz, 72 bits
Support digital format: PCM 24 bit, up to 384 kHz, DXD, DSD 256
Bandwidth: 5Hz to 40KHz (+ 0 – 3dB)
Noise level: - 128 DBR (linear)
Inter channel phase: < 0.5 ° at 20 kHz
Loss of true: < 0.02% (- 20dbfs)
Height: 7.6cm
Width: 28cm
Depth: 35cm
DSD 4X format (DSD256) supports up to 384kHz PCM audio stream signals and DSD256 digital stream master audio files. Its decoding capability is twice that of HD DAC. It runs at today's highest resolution, 25 times that of standard CD and 4 times that of SACD.
Twenty-five sophisticated ultra-low noise internal power supply components provide each component with its own independent pure power source for a purer sound.
Analog and digital output circuit boards are designed independently of each other to avoid interference.
In the simulation part, no filter is set, and transient and harmonic are preserved.
Ultra high performance drive stage, hand wound transformer and valve output stage.
