Vacuum tube: two 12AX7 / ECC83; one 12at7 / ecc81
Input: XLR, RCA 1 to 4
Output: 2 sets of XLR and 1 set of RCA
Frequency response: 10Hz – 50KHz
Dynamic range: > 125dB (+ 12 dB gain)
Input impedance: 50K ohm
Output impedance: 6 ohm
Distortion: thd + n < 0.01%
Power consumption: 12W
En veille:10mW
Voltage: 230V
Width: 27.7cm
Height: 7.6cm
Depth: 37.9cm
Weight: 4.9kg

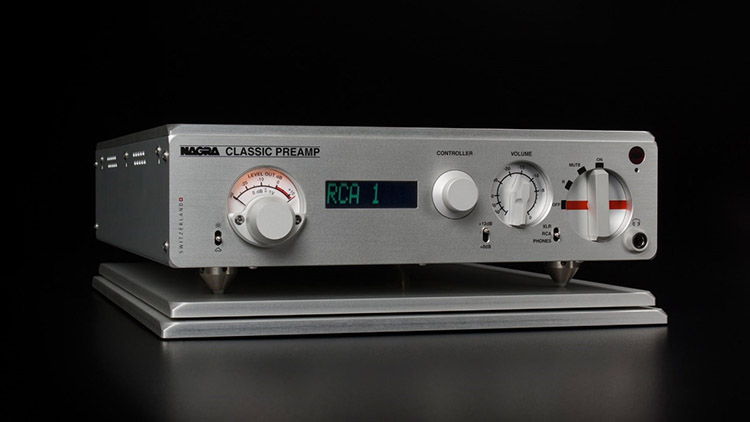

Perfect optimization of NAGRA's classic high level amplifier circuit, the newly designed precision power supply completely isolates AC line noise, providing the highest quality quiet and stable power supply essential to the audio system.
Using the shortest signal path design circuit, the vacuum tube machine sound on a natural, balanced basis to high density, high transparency and high analytical power level, to meet the requirements of today's most fastidious music enthusiasts.
Using three carefully selected vacuum tubes and multiple NAGRA tailor made giant waxed paper coupling capacitors, it provides unparalleled sound clarity and simulated warmth.
The specially individually enhanced earphone amplifiers meet the demanding requirements of modern earphone enthusiasts.
Independent multiple ultra-low noise left and right channel power sources can create a larger and more realistic sound field.
It can be configured with precision output cattle hand-wound by NAGRA manufacturers to achieve balanced output.
